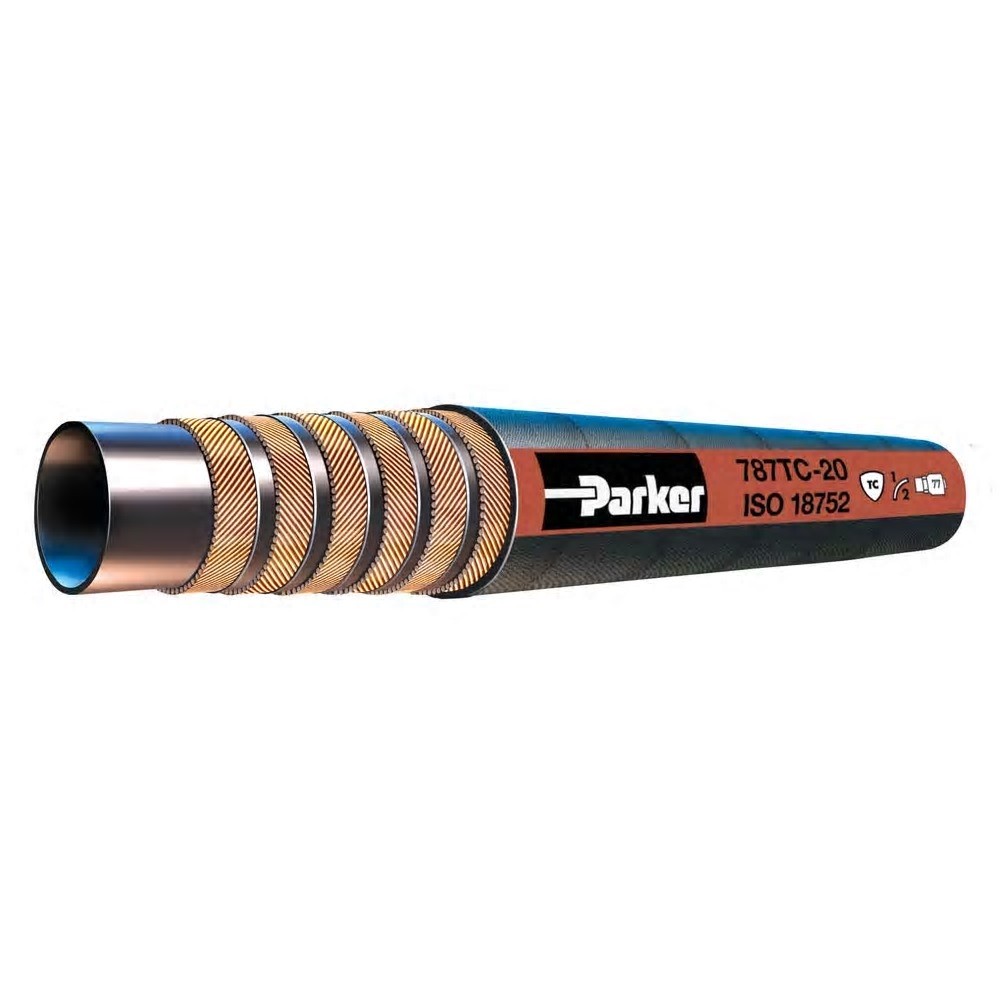

787TC - High-Pressure No-Skive GlobalCore Compact Spiral™ Tough Cover Hose
Login to see prices and stocks
  • Fast order processing
  • All products in stock
  • 24/7 Support
  • Questions? Call +31(0)10 - 479 15 11

More information about 0787TC-20

Partnumber
0787TC-20
Weight (KG)
1.271800
Partnumber Parker
787TC-20
Manufacturer
Parker Hannifin
Hose Cover Material
Synthetic rubber, Highly abrasion resistance , MSHA accepted
Reinforcement Type
Four or six spirals high-tensile steel wire
Tube Type
Proprietary synthetic rubber
Working Pressure (BAR)
350
Bending radius
210
Hose I.D. (DN)
-31
Hose I.D. (inch)
11/4"
Hose I.D. (mm)
31.8
Customs Tariff Number
40092100
Country of Manufacture
Italy
Sales Unit
Meter

Details of the 0787TC-20

Parker’s 787 hose, within the GlobalCore product line, was designed to deliver consistency and reliability with a constant working pressure of 5,000 PSI in all sizes. The 787 hose is made with Compact Spiral technology making it light, durable, and easily bent making installation easier and quicker. The 787 hose is designed, built, and tested to meet ISO 18752 performance specifications. Sizes range from ¼” to 2” in diameter with different cover options available for various markets.

Markets:

  • Military
  • Construction
  • Forestry
  • Oil Field Service
  • Industrial
  • Mining

Features/Benefits:

  • Standard, ToughCover or SuperTough cover options to prevent abrasion
  • Half SAE bend radius for ease of installation and low force to flex
  • 30% smaller O.D. compared to standard SAE spiral hose
  • Twice the impulse/life – tested to 2,000,000 cycles
  • 5,000 PSI constant working pressure in all sizes
  • Lighter than the standard SAE spiral hose

Applications:

Petroleum base hydraulic fluids and lubricating oils

Compatible Fittings:

  • 43 Series fittings (for -4 to -6)
  • 77 series fittings (for -8 to -32)

Downloads 1 of the 0787TC-20
