0774-24

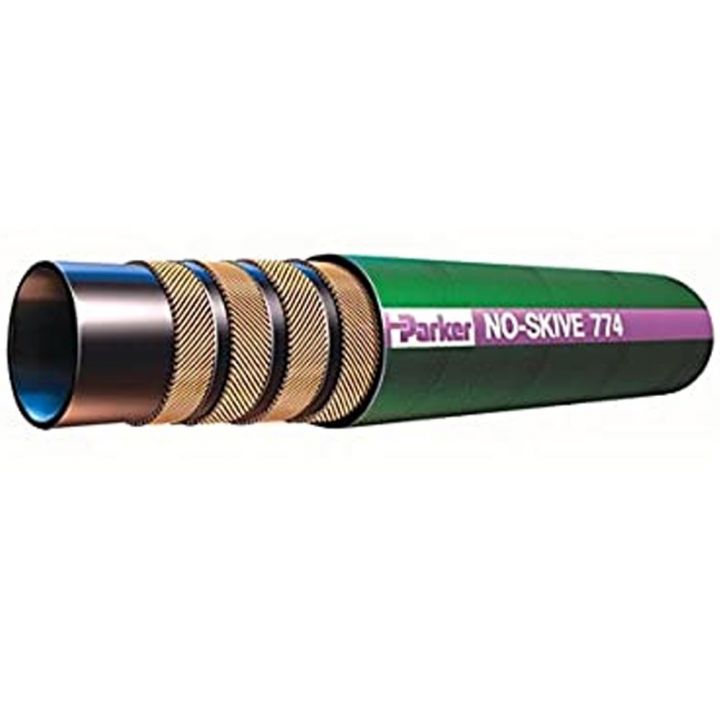

774 - High-Pressure No-Skive Spiral Hose - For phosphate ester base fluids
Login to see prices and stocks
  • Fast order processing
  • All products in stock
  • 24/7 Support
  • Questions? Call +31(0)10 - 479 15 11

More information about 0774-24

Partnumber
0774-24
Manufacturer
Parker Hannifin
Brand
Parker
Crossreference Parker
774-24
Hose Cover Material
Phosphate ester and weather resistant, green, EPDM synthetic rubber cover
Reinforcement Type
Four spirals high-tensile steel wire
Tube Type
Phosphate ester resistant EPDM synthetic rubber
Working Pressure (BAR)
175
Working Temperature
-40 °C up to +80 °C
Bending radius
500
Hose I.D. (DN)
-38
Hose I.D. (inch)
11/2"
Hose I.D. (mm)
38.1
Weight (KG)
3.260000
Customs Tariff Number
40092100
Country of Manufacture
United States
Sales Unit
Meter

Details of the 0774-24

Parker's 774 hose is a phosphate-ester compatible hose that has a pressure range of 2500-4000 PSI and is specifically designed to resist aggressive airline hydraulic fluids. The 774 hose is reinforced with four spiral steel wires and has an EPDM rubber cover making it extremely durable. Sizes range from ¾” to 2” in diameter to fit the requirements of various markets.

Markets:

  • Ground Support Equipment
  • Industrial

Features/Benefits:

  • 2500-4000 PSI in different sizes
  • Dimensionally conforms to 100R12 and EN 856 Type R12 specifications
  • Leak-free assemblies when used with EPDM O-ring face seals and proper fittings

Applications:

  • Phosphate-ester base hydraulic fluids

Compatible Fittings:

  • 71 series fittings
