0492-04

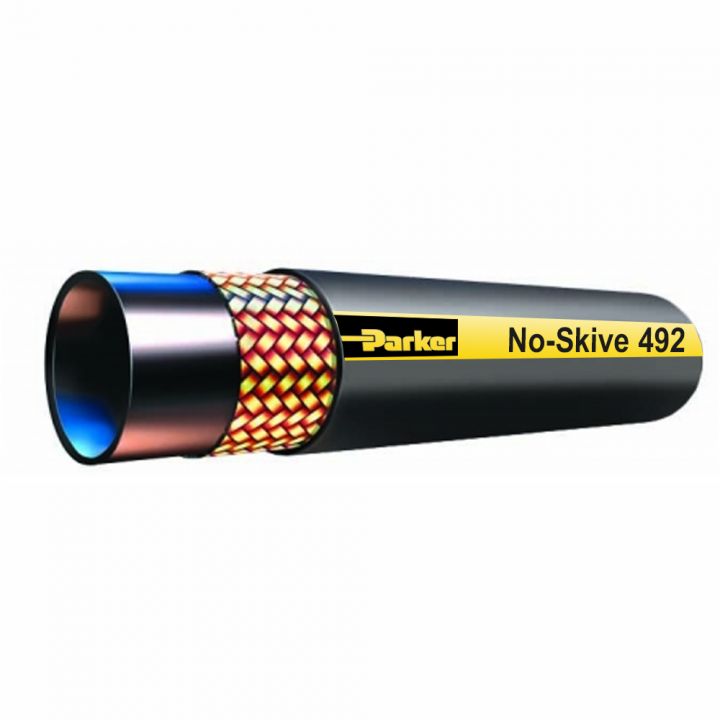

492 - Medium-Pressure Elite Compact Hose - EN 857 1SC / ISO 11237
Login to see prices and stocks
Ordered before 3pm, shipped today
  • Fast order processing
  • All products in stock
  • 24/7 Support
  • Questions? Call +31(0)10 - 479 15 11

More information about 0492-04

Partnumber
0492-04
Manufacturer
Parker Hannifin
Brand
Parker
Crossreference Parker
492-4
Hose Cover Material
Synthetic rubber
Reinforcement Type
One high tensile steel wire braid
Tube Type
Nitrile (NBR)
Working Pressure (BAR)
280
Working Temperature
-40 °C up to +100 °C
Bending radius
75
Hose I.D. (DN)
-6
Hose I.D. (inch)
1/4"
Hose I.D. (mm)
6.4
Weight (KG)
0.168900
Customs Tariff Number
40092100
Country of Manufacture
Italy
Sales Unit
Meter

Details of the 0492-04

Parker's Medium Pressure Elite No-Skive Compact hose range 492, 492TC, 492ST - according to EN 857 1SC - ISO 11237 Type 1SC offers an excellent solution for the more demanding market requirements and is exceeding ISO and EN specifications. Advanced materials and production technologies are applied to address the market's top compact hose application priorities such as routing ease, abrasion resistance, bend radius, media and environmental influence. This medium pressure hoses are available with standard cover, tough cover (TC) and super tough cover (ST). Tough cover offers 80 x and super tough cover even 450 x greater abrasion resistance than standard rubber cover hoses. The Medium Pressure hose range is complemented by a full selection of compatible No-Skive fittings in steel and stainless steel.

Markets:

  • Construction Equipment
  • Injection Moulding
  • Forestry and Agriculture
  • Materials Handling
  • Pulp and Paper

Features/Benefits:

  • Matched hose and fitting system guarantees an approved and safe combination and the highest quality and safety combined with the longest service life of the final product to the end-users.
  • High quality compounds allows thin covers, less weight, long service life.
  • High flexibility for easier installation and increased service life.
  • High abrasion resistance hose covers superior to ISO 6945 requirements, extending service life.
  • Small bend radii and light weight for applications where space and weight are determining factors.
  • High ozone-resistant cover compounds extending weathering and aging resistance.
  • Complete No-Skive fitting technology across the full range of medium pressure hoses providing simpler, quicker and safer hose assembly.

Applications:

  • All mobile and industrial medium pressure applications
  • Construction machines
  • Agriculture and forestry machines
  • Materials handling machines
  • Automotive/machine tool
  • Injection moulding and pulp and paper machines

Parker's Medium Pressures Hoses 492, 492TC, 492ST are compatible with the Parker Parkrimp medium pressure fitting series 46.
