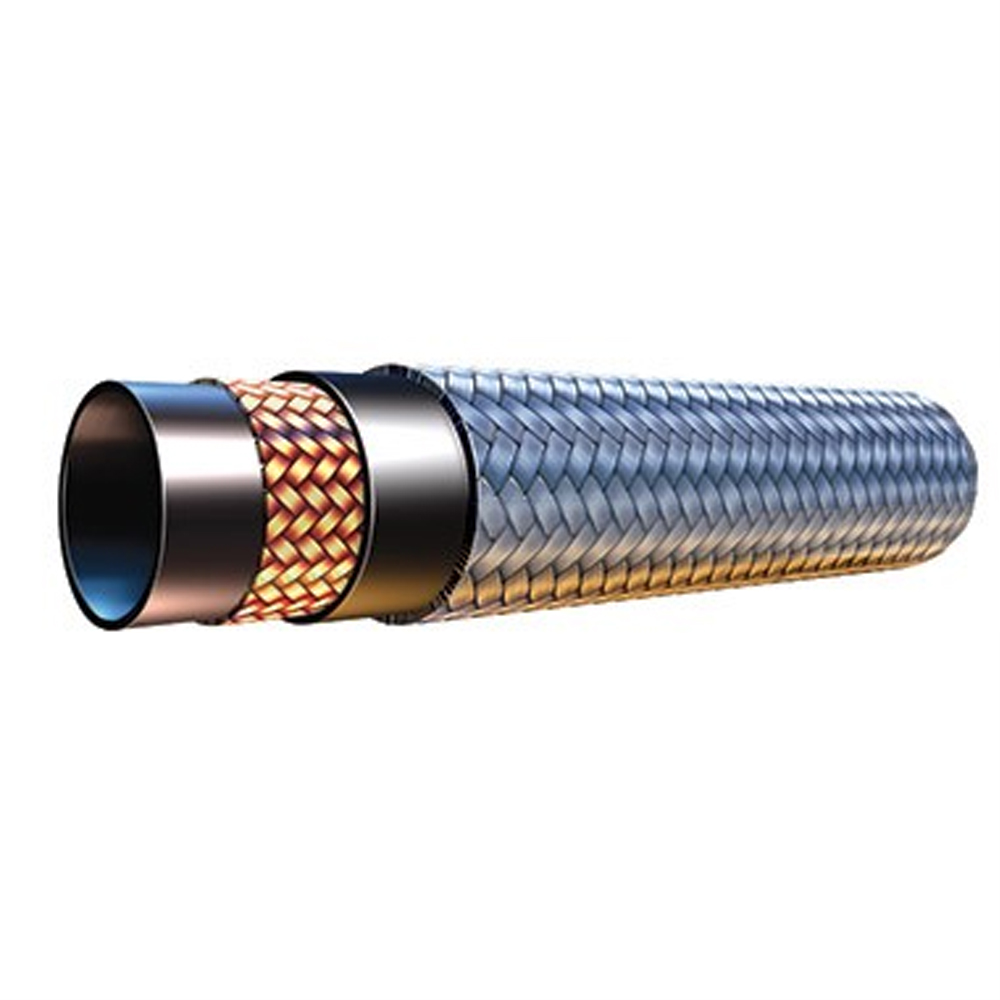

421WC - Medium-Pressure No-Skive Hose - EN 853 1SN - ISO 1436 (Wire Cover)
Login to see prices and stocks
  • Fast order processing
  • All products in stock
  • 24/7 Support
  • Questions? Call +31(0)10 - 479 15 11

More information about 0311-12WC

Partnumber
0311-12WC
Weight (KG)
0.950000
Country of Manufacture
United States
Manufacturer
Parker Hannifin
Partnumber Parker
421WC-12
Hose Cover Material
Synthetic rubber
Reinforcement Type
One high tensile steel wire braid
Tube Type
Nitrile (NBR)
Hose I.D. (DN)
-19
Hose I.D. (inch)
3/4"
Hose I.D. (mm)
19.1
Sales Unit
Meter
Customs Tariff Number
40092100

Details of the 0311-12WC

Parker's Medium Pressure No-Skive hoses 421SN, 421RH and 421WC according to EN 853 1SN - ISO 1436 Type 1 with the No-Skive thin cover hose construction is the ideal range for general medium pressure applications. This hose offers extended fluid compatibility and is the ideal hose for the machine tool and glass industry, general medium pressure hydraulic and pneumatic systems, and water and oil cooling circuits.

Markets:

  • Mobile
  • Industrial
  • Transportation

Features/Benefits:

  • Matched hose and fitting system guarantees an approved and safe combination and the highest quality and safety, combined with the longest service life of the final product to the end-users.
  • The hose type 421SN has a nitrile (NBR) inner tube for extended fluid compatibility.
  • The 421WC with a galvanized steel wire cover is metal and glass hot spot resistant and therefore ideal for the machine tool and glass industry.
  • 421RH with a nitrile (NBR) inner tube and a fire retardant cover (no additional fire sleeves are needed) is railway approved according to EN45545 and ISO15540, making this the ideal hose for general medium pressure hydraulic and pneumatic systems as well as water and oil cooling circuits.
  • Complete No-Skive fitting technology across the full range of medium pressure hoses providing simpler, quicker and safer hose assembly.

Applications:

  • General medium pressure hydraulic and pneumatic systems
  • Water and oil cooling circuits
  • Machine tool and glass industry
  • Railway
  • Agriculture and forestry machines

Parker's Medium Pressures Hoses 421SN, 421RH and 421WC are compatible with the Parker Parkrimp medium pressure fitting series 48 (421WC with 43 series).

Downloads 1 of the 0311-12WC
