WHK06LMOMD

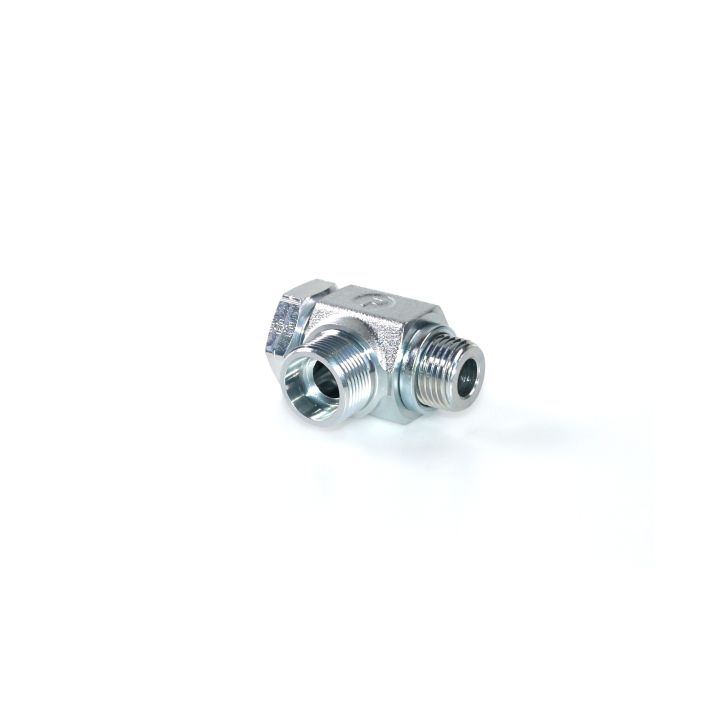

High pressure DIN banjo fitting
- Snelle orderverwerking
- Alle producten op voorraad
- 24/7 service bereikbaar
- Vragen? Bel +31 (0)10 - 479 15 11
Specificaties van WHK06LMOMD
- Artikelnummer
- WHK06LMOMD
- Merk
- Ermeto
- Fabrikant
- Parker Hannifin
- Crossreference Parker
- WHK06LMOMDCF
- Materiaal
- Staal, Chroom-6 Vrij
- Pijpdiameter
- 06L - M12×1.5
- Gewicht (KG)
- 0.034300
- Land van Oorsprong
- Duitsland
- Verkoopeenheid
- Stuks
Beschrijving van de WHK06LMOMD
Banjo fittings are used in applications with limited space that involve high working pressure levels.
In the past, the Parker banjo fitting product range has included the W H(high-pressure resistant), SWVE (compact design) and DSVW (very good flow) properties series.
Now, we have combined these 3 series to create the new WHK series, uniting all of the advantages of our former banjo fitting designs. Besides the product features also the product safety was improved. By the new design banjo bolts can not fall out during assembly thanks to the optimized design. Above that a mix-up between metric and inch dimensions is not possible anymore.
Markets:
• Automotive
• Defence
• Energy
• Environment
• Industrial
• Infrastructure
• Machine Tools
• Materials Handling
• Mobile
• Oil and Gas
• Power Generation
• Process
• Transportation
• Water
Applications:
Suitable for general hydraulic applications.
Features/ benefits:
• High-pressure resistant (up to 420 bar)
• Compact design
• Soft-sealing system with outstanding sealing properties
• Low pressure loss thanks to optimized banjo bolt design with angled drilling
• 2-in-1: Metal sealing version available - no additional metal sealing ring required
• Improved security
• Improved warehouse management
