Specificaties van TMPC77Q
- Artikelnummer
- TMPC77Q
- Gewicht (KG)
- 1.209000
- Merk
- TEMA
- Fabrikant
- Parker Hannifin
- Crossreference Parker
- TMPC77Q
- Werk Temperatuur
- -30°C up to +100°C
- Serie
- C-Line Compact
- Goederencode
- 76169990
- Verpakkingsaantal
- 1
- Land van Oorsprong
- Zweden
- Verkoopeenheid
- stuks
Beschrijving van de TMPC77Q
Technical Description:

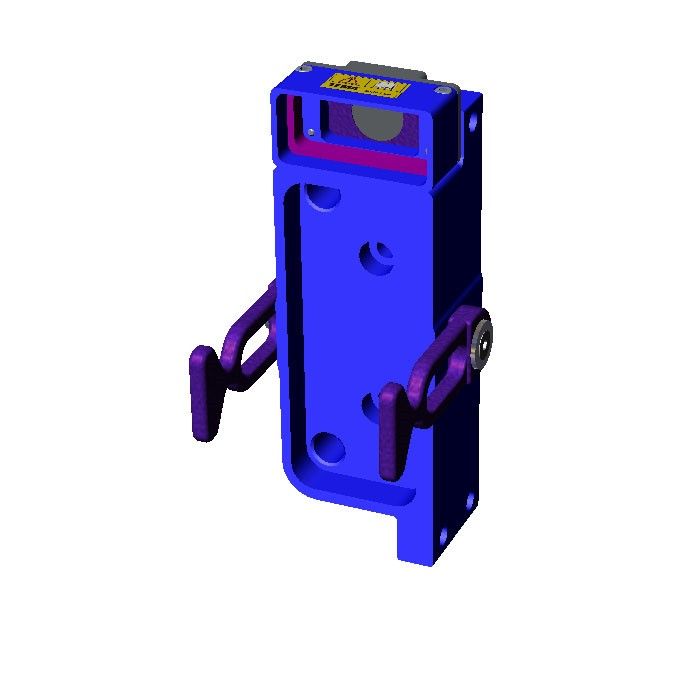

Multiple connector system with locking lever and safety locking. Original Tema plug-profile with spill-proof flat face design. Coupling body/plug fitted with high-flow valve system.
Pressure Eliminator:
All plugs are fitted with pressure eliminators to eliminate residual pressures up to maximum working pressure on the plug side (maximum 50 bar on the coupling side).
7-pole Electrical Connection:
- Male part (coupling plate)
- Cable: 7 x 1,5 RDOE 5m
- Female part (plug plate)
- Cable: 7 x 1,5 RDOE 3m
- Not IP classified
- Contact block: NBR
- Connector: (pins and casing) bronze, silver plated
- Electric connection box: Thermoplastic (POM)
- Pull relief (cable): PA/NBR
- Max. voltage: 24 V
- Max. current: 16 A*
* For return-current through cable, the total permitted current through the connector is maximum 16 A.
Working Temperature:
-30°C up to +100°C (NBR/PUR)
Working Pressure:
Max. pressure range: 350 bar (design factor 4:1)
