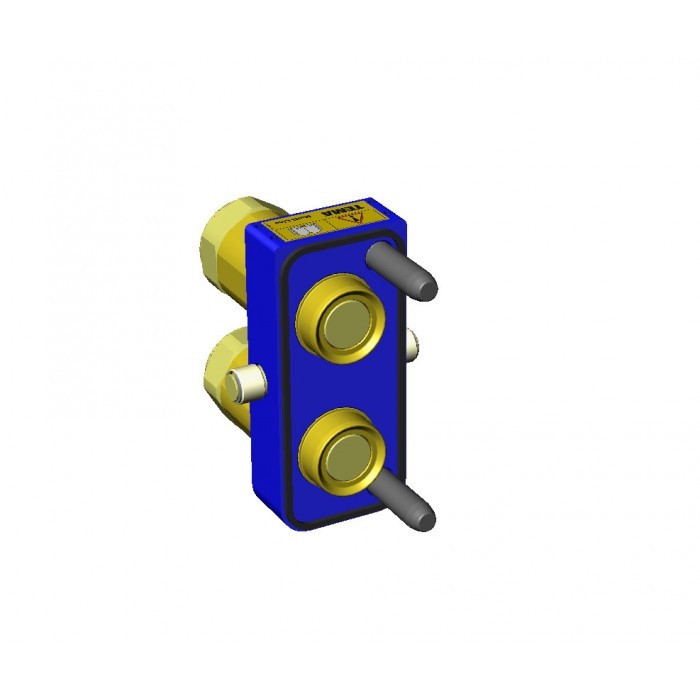

TMMC55

Technical Description:

Multiple connector system with locking lever and safety locking. Original Tema plug-profile with spill-proof flat face design. Coupling body/plug fitted with high-flow valve system.

Pressure Eliminator:

All plugs are fitted with pressure eliminators to eliminate residual pressures up to maximum working pressure on the plug side (maximum 50 bar on the coupling side).

7-pole Electrical Connection:

• Male part (coupling plate)
• Cable: 7 x 1,5 RDOE 5m
• Female part (plug plate)
• Cable: 7 x 1,5 RDOE 3m
• Not IP classified
• Contact block: NBR
• Connector: (pins and casing) bronze, silver plated
• Electric connection box: Thermoplastic (POM)
• Pull relief (cable): PA/NBR
• Max. voltage: 24 V
• Max. current: 16 A*

* For return-current through cable, the total permitted current through the connector is maximum 16 A.

Working Temperature:

-30°C up to +100°C (NBR/PUR)

Working Pressure:

Max. pressure range: 350 bar (design factor 4:1)
