TMFC55QB

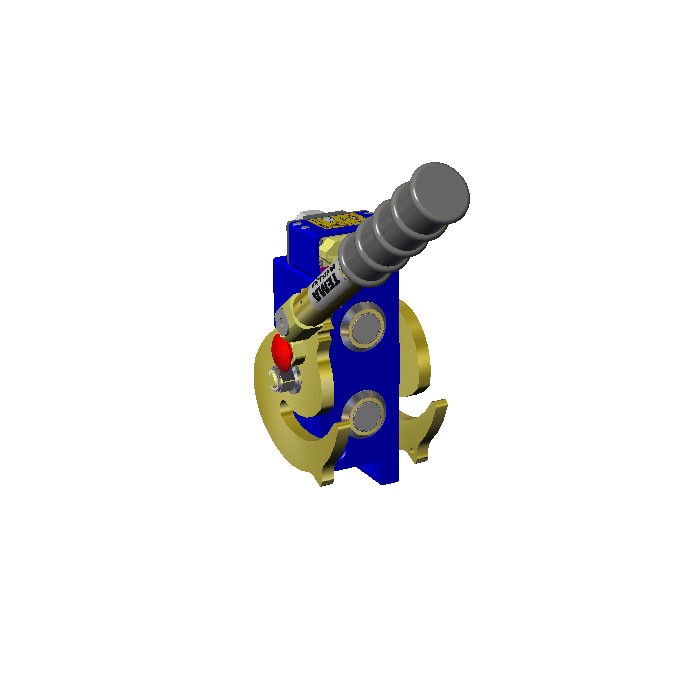

Multi-Line koppeling plate, left 2xG1/2" + 14p connector
Login voor de prijs en voorraad
Voor 15:00 uur besteld, vandaag verzonden
  • Snelle orderverwerking
  • Alle producten op voorraad
  • 24/7 service bereikbaar
  • Vragen? Bel +31 (0)10 - 479 15 11

Specificaties van TMFC55QB

Artikelnummer
TMFC55QB
Gewicht (KG)
5.925000
Merk
TEMA
Fabrikant
Parker Hannifin
Crossreference Parker
TMFC55QB
Draadmaat
1/2 BSP Binnendraad
Werk Temperatuur
-30°C up to +100°C
Serie
C-Line Compact
Electrical Connection
14-polige elektrische aansluiting
Locking Lever Position
Links
Technische Informatie
The protective cap is included
Goederencode
84812010
Verpakkingsaantal
1
Land van Oorsprong
Zweden
Verkoopeenheid
stuks

Beschrijving van de TMFC55QB

Technical Description:

Multiple connector system with locking lever and safety locking. Original Tema plug-profile with spill-proof flat face design. Coupling body/plug fitted with high-flow valve system.

Pressure Eliminator:

All plugs are fitted with pressure eliminators to eliminate residual pressures up to maximum working pressure on the plug side (maximum 50 bar on the coupling side).

7-pole Electrical Connection:

  • Male part (coupling plate)
  • Cable: 7 x 1,5 RDOE 5m
  • Female part (plug plate)
  • Cable: 7 x 1,5 RDOE 3m
  • Not IP classified
  • Contact block: NBR
  • Connector: (pins and casing) bronze, silver plated
  • Electric connection box: Thermoplastic (POM)
  • Pull relief (cable): PA/NBR
  • Max. voltage: 24 V
  • Max. current: 16 A*

* For return-current through cable, the total permitted current through the connector is maximum 16 A.

Working Temperature:

-30°C up to +100°C (NBR/PUR)

Working Pressure:

Max. pressure range: 350 bar (design factor 4:1)
