TK0400R5640AAAB

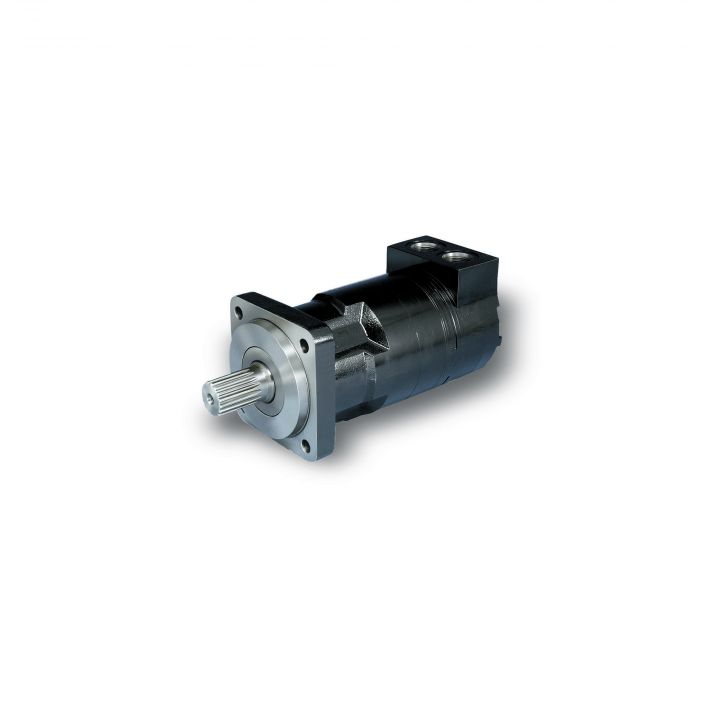

Parker's TK series low speed, high torque motors can deliver six times the endurance life, which decreases OEM warranty expenditures and end user field maintenance. Torqmotor™ TK Series is a durable hydraulic motor with superior side load capacity, high pressure shaft seal and smooth low speed operation. Ideal for heavy duty applications such as vehicle propulsion, augers, chain drives, winches and boom rotate. Intermittent pressures go to 4,500 psi. with high flow capability to 60 gpm. Max dynamic side load capability is 7500 lb. on wheel mounts at the key. This rugged Low Speed High Torque (LSHT) orbital motor features robust construction with continuous oil flow across the splines for longer life, superior side load capacity, and smooth extra low speed operation. A high pressure shaft seal is standard. Its innovative design eliminates the need for a case drain. Dependability is based on high quality design and manufacturing. Designed and manufactured in Greeneville, TN USA.

Markets:

• Turf Equipment
• Aerial
• Agriculture Machinery
• Construction Equipment
• Factory Automation
• Material Handling Equipment
• Oil & Gas
• Forestry Equipment
• Mining

Features/Benefits:

• Flange mounts carry up to 6000 lb. dynamic side load at the key
• Wheel mounts carry up to 7500 lb. dynamic side load at the key
• Robust construction for longer life
• Continuous oil flow across internal splines for longer life
• Superior side load capacity
• Smooth, extra low speed operation
• High pressure shaft seal is standard
• Innovative design eliminates the need for a case drain
• Dependability based on high quality design and manufacturing
• Designed and manufactured in Greeneville, TN USA

Applications:

• Trenchers
• Skid Steer Attachments
• Golf Course Maintenance Equipment
• Sweepers
• Wood Chippers
• Conveyers
• Combine Harvesters
• Winches
• Augers
• Portable Irrigation Systems
• Post Hole Augers
• Potato, Tomato, Nut, Leafy Vegetable, Sugar, Cotton, Coffee and Grape Specialty Harvesters
• Combine Header Drives
• Sprayers
• Forestry
• Snow Removal
• Salt and Sand Spreaders
• Pipe Spinners
