FHV

2 producten

12 24 36

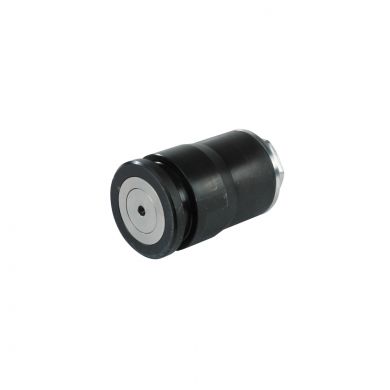

  1. 3HF24-0/112GF
    3HF24-0/112GF
    Login voor de prijs en voorraad

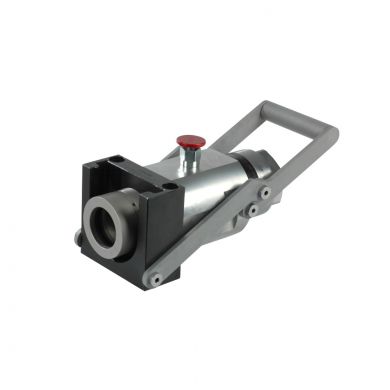

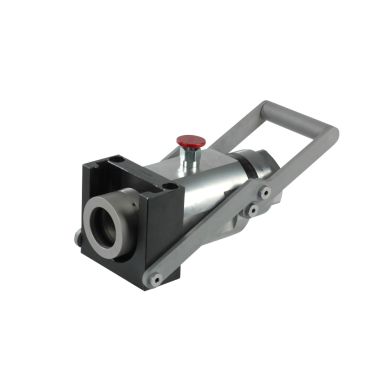

  2. 3HFL24-0/112GM
    3HFL24-0/112GM
    Login voor de prijs en voorraad

2 producten

12 24 36

As a consequence, the technical solutions adopted for developing and manufacturing the new FHV series quick release coupling must represent excellence because quickrelease couplings represent are interface between the machine (power source) and the hydraulic attachment. The homologation test confirms the best performance of FHV screw-on couplers:
User friendly.

  • Safety sleeve.
  • Rd Thread.
  • Female adaptor free in rotation.
  • Excellent corrosion resistance.
  • Minimum pressure drop
  • Polyurethane sealing technology
  • Maximum working pressure up to 46 MPa.
  • High burst resistance.

Faster FHV screw-on couplings are characterized by the perfect flatness of the shut-off valves adopting the Flat-Face valve technology. This product concept guarantees:

  • No spillage or air inclusion during lines connection and disconnection due to the flatface valves.
  • Ease of cleaning due to the flatness of the mating surfaces.
  • Female valve is blocked within the coupling by a pair of patented semi-guides made of sintered steel granting a greater flow cross section.
  • Faster FHV screw on couplings are available with a wide range of threaded adaptors such as: BSP, Metric, NPT, SAE, flange and flange head.
  • Faster FHV screw on couplings are also equipped (on request) with dust protection caps in two different choices: Aluminium screw-on caps, and PVC rubber plug.
