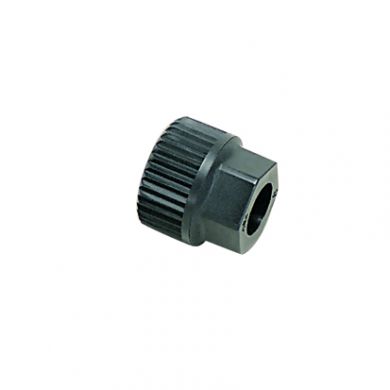

0110..70 - Technisch Polymeer moer-knelring

*Assembly specifications for nut-olive 0110 ..70

This part functions as both olive and nut for flexible polymer tube assemblies:

Hand tighten the polymer nut-olive a few turns onto the body of the fitting; the knurling makes this easier.
Then introduce the polymer tube and push home into the body of the fitting.
Continue manually tightening the polymer nut-olive.
Finish tightening using a spanner until the nut body disengages and turns freely, which acts as a torque limiter.

N.B.: To avoid damaging the threads, do not insert the tube before hand tightening the nut-olive into the body of the fitting.
**Bureau de Normalisation de l'Automobile (French Automotive Bureau of Standards)
