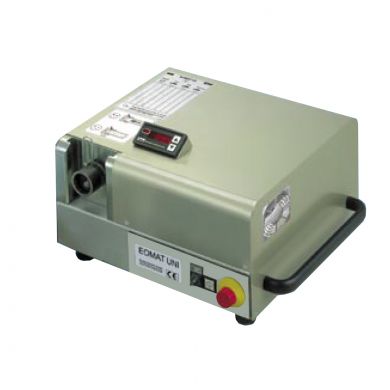

The EOMAT UNI is an electro-hydraulic machine for the assembly of: EO-2 EO PSR/DPR and Triple-Lok® 37° flared tube fittings. Compared to manual assembly it greatly reduces assembly time, effort and cost and also guarantees leakfree performance of constant high-quality fitting assemblies. Common tube materials such as steel (ST 37.4 NBK, ST 52.4 NBK), stainless steel (1.4571/1.4541/316Ti or similar) and copper can be pre-assembled. The tool range covers all metric tube sizes from 4 to 42 mm outer diameter. The required operating pressure is variable and set at the LED-Display. The unit may therefore be used for a variety of different applications. The tooling for either EO-2/PSR/DPR pre-assembly or tube flaring may be manually replaced, without the use of tools. The EOMAT uni is an electro-hydraulic machine for the assembly of: EO-2 EO PSR/DPR and Triple-Lok® 37° flared tube fittings. Compared to manual assembly it greatly reduces assembly time, effort and cost and also guarantees leakfree performance of constant high-quality fitting assemblies. Common tube materials such as steel (ST 37.4 NBK, ST 52.4 NBK), stainless steel (1.4571/1.4541/316Ti or similar) and copper can be pre-assembled. The tool range covers all metric tube sizes from 4 to 42 mm outer diameter. The required operating pressure is variable and set at the LED-Display. The unit may therefore be used for a variety of different applications. The tooling for either EO-2/PSR/DPR pre-assembly or tube flaring may be manually replaced, without the use of tools.

EOMAT UNI
Assembly method:
EO-2: Pressure controlled
D/DPR/PSR: Pressure controlled
Conventional 37° flaring
Material: Steel, Stainless Steel
Outside diameter: 6-42 mm
Minimum U-bend: 65 mm
Wall thickness: No limitation
EO-2/PSR/DPR/Triple-Lok®: 6×1 to 38×4 or 42×3 mm
(Tube O.D. × wall thickness)
Manual pressure adjustment according to selection chart
Depending on: Assembly type, tube dimension, tube material
Process control: Pressure gauge
Error detection: no
Memory function: no
Oil temperature control: no
Foot operating switch: Not available
Performance: 1 Phase, 230 V
EO-2: 12
DPR/PSR: 15
37° flaring: 15
Economic production quantity: max. 300 assemblies per day
Continuous operating: 80%
Weight: approx.. 66 kg
