9995102

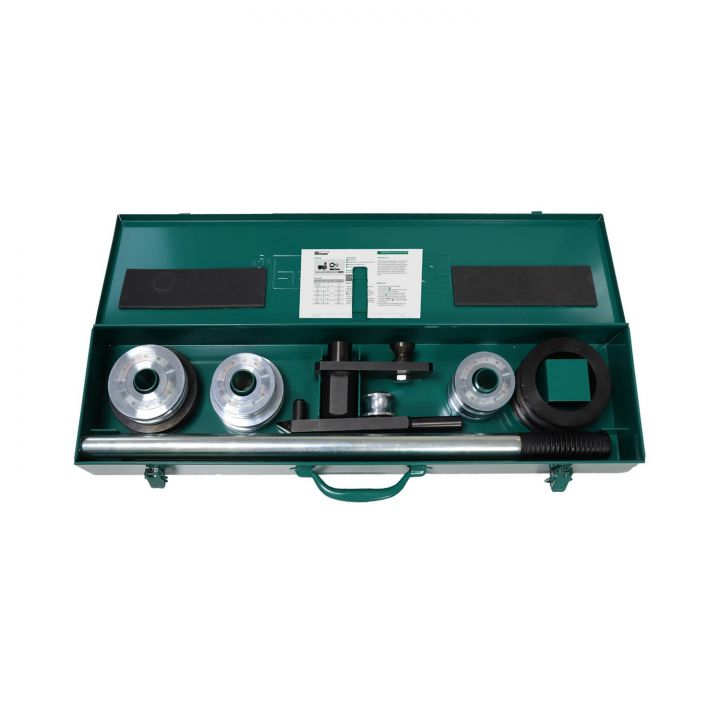

Manual Tube Bender in a High-Quality Steel Case for Metric Tubes made of Steel and Stainless Steel with Diameters from 6-22 mm, Complete Set with 8 Bending Rollers and Accessories
Login voor de prijs en voorraad
Voor 15:00 uur besteld, vandaag verzonden
  • Snelle orderverwerking
  • Alle producten op voorraad
  • 24/7 service bereikbaar
  • Vragen? Bel +31 (0)10 - 479 15 11

Specificaties van 9995102

Artikelnummer
9995102
Fabrikant
Stauff
Merk
Stauff
Artikelnummer Leverancier
TUB-MA-M622-LV-KIT
Maat
6 / 22 mm
Gewicht (KG)
13.805000
Land van Oorsprong
Duitsland
Goederencode
82055980
Verkoopeenheid
stuks

Beschrijving van de 9995102

When used with a commercially available vice, STAUFF manual tube benders, type TUB-MA, enable common hydraulic tubes to be bent manually.

They are suitable for steel and stainless steel tubes with diameters of 6, 8, 10, 12, 14, 15, 16, 18 and 22 mm with a defined minimum wall thickness.

The eight bending rollers – six in the imperial version – ensure maximum wear.

A scale lasered onto the bending rollers enhances the accuracy of the required bending angle with superior precision.

The manual tube bender is supplied with all the necessary components and multilingual instructions for use as a complete kit in a high-quality steel case.

Features and advantages

  • Small bending radii allow for compact assemblies
  • Optimised bending contour, which enables tube bends free of flattening and constriction
  • Hard wearing steel bending rolls
  • Ideal for versatile site use, possibly for installation work on site
