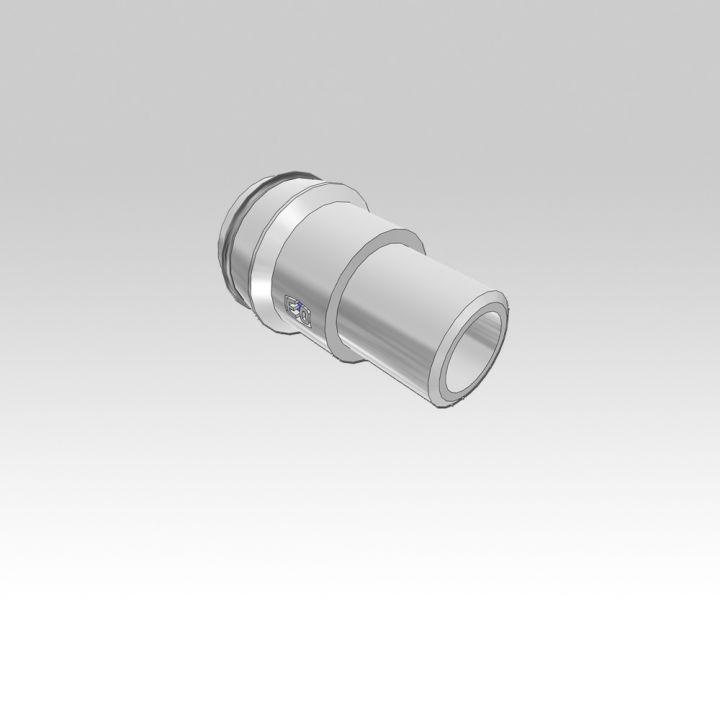

Reducing weld nipple - EO 24° O-ring weld nipple x butt weld, steel phosphated
Login to see prices and stocks

Dit artikel is op het moment niet op voorraad. Meer informatie over de
levertijd, mail naar info@geeve.com of bel naar +31 (0)10 - 479 15 11

  • Fast order processing
  • All products in stock
  • 24/7 Support
  • Questions? Call +31(0)10 - 479 15 11

More information about SKAR30/25X4

Parker Hannifin
Partnumber Parker
Steel Phosphated
Reducing weld nipple - EO 24° O-ring weld nipple / butt weld
Body only
Weight (KG)
Customs Tariff Number
Sales Unit

Details of the SKAR30/25X4

Ermeto SKAR weld nipple types can be assembled in any EO tube fitting. Ermeto weld nipples are available in all sizes from 6 – 38/42 in the light and heavy series. The Ermeto weld nipple is welded to the tube end without the O-ring. Assembling beforehand a retaining nut with the right size and orientation should not be forgotten. Special guidelines and regulations may apply to the pre-handling of the tube end, the welding procedure, welding personnel qualifications, post-processing and testing and documentation of the weld connection.


  • Press construction
  • Heavy machinery building
  • Power station construction
  • Shipbuilding


  • Suitable for general hydraulic applications.

Features/ benefits:

  • Ermeto weld nipples can be combined with all EO fittings, so that the fittings can be used in a broad range of applications.
  • The elastomeric seal acts as a primary sealing element, making the connection leak-proof. So maintenance and re-work costs are substantially reduced.Even after continuous operation for years under extreme conditions, the soft-seal weld nipple does not have to be retightened. This means that the connector has a long life and maintenance and servicing costs are noticeably diminished.
  • Insufficiently assembled Ermeto weld nipples do not come apart without warning. The user can react early enough because the connectors indicate the problem by leaking and they can be retightened.
  • Ermeto weld nipples can be undone and then re-assembled any number of times. The longevity of the connector is thereby increased and costs saved.

Downloads of the SKAR30/25X4
