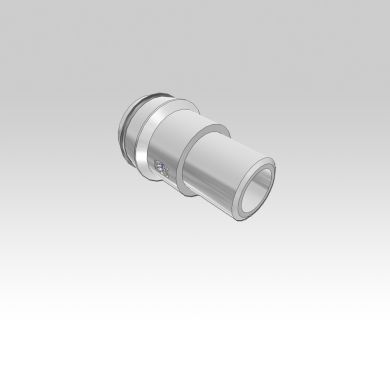

SKAR - Reducing weld nipple - EO 24° O-ring weld nipple / butt weld

15 Items

  1. SKAR16/12X2
    SKAR16/12X2
    Login to see prices and stocks
  2. SKAR16/12X2.5
    SKAR16/12X2.5
    Login to see prices and stocks
  3. SKAR16/12X2RVS
    SKAR16/12X2RVS
    Login to see prices and stocks
  4. SKAR20/16X2
    SKAR20/16X2
    Login to see prices and stocks
  5. SKAR20/16X2.5
    SKAR20/16X2.5
    Login to see prices and stocks
  6. SKAR20/16X3
    SKAR20/16X3
    Login to see prices and stocks
  7. SKAR25/16X2RVS
    SKAR25/16X2RVS
    Login to see prices and stocks
  8. SKAR25/16X3
    SKAR25/16X3
    Login to see prices and stocks
  9. SKAR30/25X371
    SKAR30/25X371
    Login to see prices and stocks
  10. SKAR38/16X2
    SKAR38/16X2
    Login to see prices and stocks
  11. SKAR38/16X371
    SKAR38/16X371
    Login to see prices and stocks
  12. SKAR38/25X3
    SKAR38/25X3
    Login to see prices and stocks
  13. SKAR38/30X371
    SKAR38/30X371
    Login to see prices and stocks
  14. SKAR38/30X4RVS
    SKAR38/30X4RVS
    Login to see prices and stocks
  15. SKAR38/30X5
    SKAR38/30X5
    Login to see prices and stocks
12 24 36

Ermeto SKAR weld nipple types can be assembled in any EO tube fitting. Ermeto weld nipples are available in all sizes from 6 – 38/42 in the light and heavy series. The Ermeto weld nipple is welded to the tube end without the O-ring. Assembling beforehand a retaining nut with the right size and orientation should not be forgotten. Special guidelines and regulations may apply to the pre-handling of the tube end, the welding procedure, welding personnel qualifications, post-processing and testing and documentation of the weld connection.

Markets:

  • Press construction
  • Heavy machinery building
  • Power station construction
  • Shipbuilding

Applications:

  • Suitable for general hydraulic applications.

Features/ benefits:

  • Ermeto weld nipples can be combined with all EO fittings, so that the fittings can be used in a broad range of applications.
  • The elastomeric seal acts as a primary sealing element, making the connection leak-proof. So maintenance and re-work costs are substantially reduced.Even after continuous operation for years under extreme conditions, the soft-seal weld nipple does not have to be retightened. This means that the connector has a long life and maintenance and servicing costs are noticeably diminished.
  • Insufficiently assembled Ermeto weld nipples do not come apart without warning. The user can react early enough because the connectors indicate the problem by leaking and they can be retightened.
  • Ermeto weld nipples can be undone and then re-assembled any number of times. The longevity of the connector is thereby increased and costs saved.
