SM-Series
Einkaufsoptionen
- More than 30.000+ products
- Personal advice!
- Questions? Call +31 (0)10 - 479 15 11
- Mail: info@geeve.com

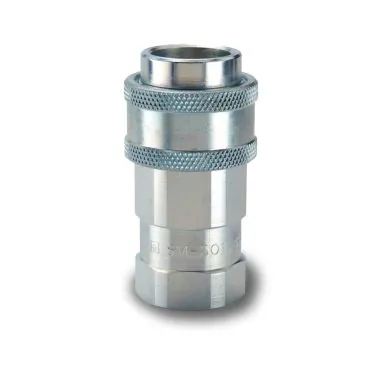

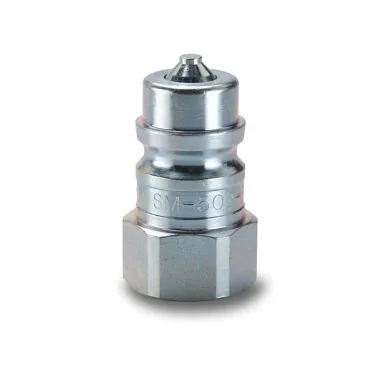

SM Series Couplers (hydraulic) up to 6000 psi connect with SM Series Nipples. Parker's SM Series are double shut-off quick couplings with manual sleeves and poppet valves. Female port end options include NPTF, O-ring Boss, and BSPP styles.
Technical Characteristics:
- Sizes: 1/4” – 3/4”
- Material: Steel
- Port Ends: Female NPTF, Female ORB, Female BSPP
- Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
- Other Coupler options include: Sleeve Lock
Markets:
- Industrial
- Construction
- Agriculture
Features/Benefits:
- Poppet valves have captive seals to minimize seal washout
- Standard end configurations include Female NPTF, Female ORB, Female BSPP
Applications:
- Industrial hydraulic lines
- Mobile equipment
